供应SENSORSHLD1-EVK-101

型号/规格：

SENSORSHLD1-EVK-101

品牌/商标：

ROHM

品牌：

ROHM

产品种类：

多功能传感器开发工具

类型：

Accelerometer, Ambient Light, Color, Gyroscope, Hall, Magnetometer, MI, Pressure

接口类型:：

I2C

询价

产品信息

ROHM SENSORSHLD1-EVK-101 Sensor Shield Evaluation Kits are evaluation platforms with various ROHM and Kionix sensors on a single board. The kits use standard Arduino shield interface pins and a shield interface header allows for connection to any evaluation kit. Several sensors are included like analog temperature, digital barometric pressure, hall switch, magnetometer, digital accelerometer, digital magnetometer, and more.

Included Sensors

ROHM BDE0600G– Analog Temperature Sensor
ROHM BM1383AGLV – Digital Barometric Pressure Sensor
ROHM BU52014HFV– Hall Switch Sensor (Omnipolar with Polarity Discrimination)
ROHM BM1422GMV – Magnetometer Sensor
ROHM KX122– Digital Accelerometer
KIONIX KMX62 – Digital Magnetometer and Accelerometer
KIONIX KXG03– Digital Gyroscope and Accelerometer
ROHM LAPIS ML8511A– Analog UV Sensor
ROHM RPR-0521– Digital Ambient Light Sensor and Proximity Sensor
ROHM BH1745– Digital Color Sensor

Additional Functions

Digital Microphone

(Knowles SPM0423HD4H-WB)

Footprint and connection specifically operable with the NXP MCU Lineup (LPCExpresso)

Miniature, high performance, low power, top port silicon digital microphone with a single bit PDM output

Accelerometers

(Kionix KX122-1037, KX122-1048)

Allows for four corner Accelerometer algorithm development

Applications include individual sensor tap detection or smart card password interfacing

All 4 Accelerometers are controllable using a single I2C bus connection

Provides high performance in an ultra-compact form factor that allows for four corner Accelerometer algorithm development

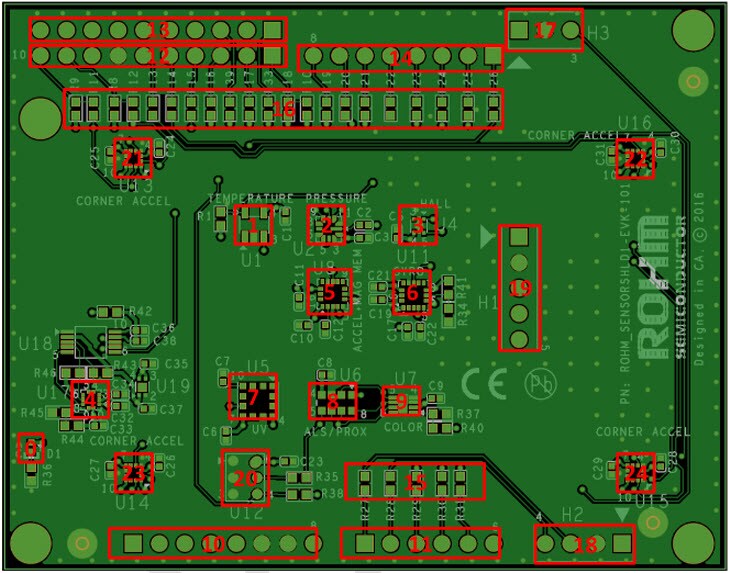

ROHM SENSORSHLD1-EVK-101 Sensor Shield Pin Outs

0. POWER ON LED: When the shield has 3.3V connected to the VCC Net, this LED will turn on
1. BDE0600G Temperature Sensor
2. BM1383GLV Pressure Sensor
3. BU52014HFV Hall Effect Switch Sensor
4. BM1422GMV Magnetometer Sensor
5. KMX62 Accelerometer and Magnetometer Combo Sensor
6. KXG03 Gyroscope and Accelerometer Combo Sensor
7. ML8511/A UV Sensor
8. RPR-0521 Combo Ambient Light Sensor and Proximity Sensor
9. BH1745 RGB Color Sensor
10. H4 – Standard Power Header
11. H5 – Standard Analog In Header
12. H7 – Standard Digital Header 1

13. H10 - Auxiliary Header for Microphone Interface
14. H6 – Standard Arduino Digital Header 2
15. Ohm Jumper Line for Pins Connected to H5
16. Ohm Jumper Line for Pins Connected to H6 and H7
17. H3 – Expansion Header for ROHM Breakout Boards/Generic Interface (3-Pin – ADC/GPIO x1)
18. H2 – Expansion Header for ROHM Breakout Boards/Generic Interface (4-Pin – ADC/GPIO x2)
19. H1 - Expansion Header for ROHM Breakout Boards/Generic Interface (4-Pin – ADC/GPIO x2)
20. KNOWLES SPM0423HD4H-WB Digital Microphone
21. U13 Top Left Corner KX022 Accelerometer
22. U16 Top Right Corner KX022 Accelerometer
23. U14 Bot Left Corner KX022 Accelerometer
24. U15 Bot Right Corner KX022 Accelerometer

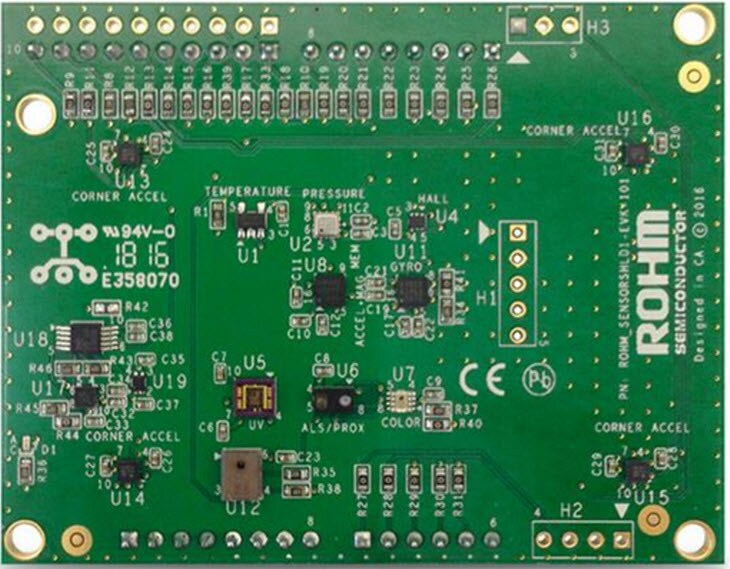

ROHM SENSORSHLD1-EVK-101 Sensor Shield Evaluation Kits
